Aero Telemetry's Hughes H-1 Racer
By Tom Atwood
An extraordinary crew works at Aero Telemetry Corporation. Founded by Joe Bok, Aero Telemetry (ATC) has been providing electronics and unmanned air vehicle (UAV) systems to the military since the early 1990s. Many of our readers know that this remarkable company specializes in scale aircraft for movies and in UAV’s. Remember the movie, The Aviator? ATC provided 11 different models for the production. Notably, the giant scale Hughes XF-11 (25-foot wingspan), H-4 Hercules (Spruce Goose), and 1/2 scale Hughes H-1 Racer were all flown safely and successfully. As noted at www.AeroTelemetry.com, these models “are still considered to be the largest flyable scale airplanes ever built for use in a movie. Long hours of hard work, perseverance, and technical know-how by the Aero Telemetry team made these extraordinary airplanes possible.”
But many may not know the diverse additional areas of expertise Aero Telemetry has expanded into over the last decade, building on robust project successes in military based UAV programs. One of the coolest projects in aerospace today is the Boeing X-48 Blended Wing Body aircraft or BWB. Aero Telemetry was contracted by The Boeing Company to build the front landing gear for the X-48 blended wing body unmanned air vehicle. “The design and fabrication of the landing gear required the Aero Telemetry team to perform dynamic load testing with data acquisition sensors to match deceleration rates to acceptable airframe load limits.”
Aero Telemetry also specializes in vintage engine restorations. Joe Bok and his team took great pride in restoring an Allison V-1710-27 engine. That engine was once a starboard engine mount on a Lockheed P-38 Lightning during WWII. It was shipped back to the United States for overhaul in late 1943. It is an incredible piece of American history that has survived the years to be brought back to life once again by the ATC team—see the projects pages at www.aerotelemetry.com for more on this and the other diverse programs at ATC. Their technology is also used at academic institutions and in one project, ATC designed a package to detect the impact energy of football helmets, while in use, on the playing field.
H-1 Racer
As the AMA planned its 75th anniversary celebration, which will be held in Muncie this July, it inquired with Joe whether ATC might do something special for the gala event. Joe’s team came up with a 50 percent scale H-1 Racer. The H-1 in The Aviator, designed based on countless photos of the original at the Smithsonian, weighed 350 pounds. The new model looked to weigh in at 225 pounds ready to fly. “Too heavy,” said the AMA. It would have to top out at 125 pounds to be legal at the event. Joe’s indefatigable team went back to the drawing board—a 3rd plane had to be designed and built!
And true to form, ATC developed new technology. Precisely engineered resin-infused carbon fiber cloth would comprise the new H-1’s skin. This will be the largest and perhaps the most sophisticated 50 percent scale model in the world, with custom engineered retracts and sophisticated electronic control systems. The 5-cylinder, 4-stroke radial initially envisioned for the project may have to be replaced with a lighter mill. But Joe, an aerospace engineer with a can-do attitude, is not fazed. He says this has been a useful challenge that has expanded ATC’s markets.
We applaud this magnificent project, and also the contributions of the ATC team in other arenas. Joe and his people are making a difference by providing electronic systems to the military, and for this reason this aerospace group also wears a badge of honor.
Joe Bok and His H-1 Racer
Written by Rachelle Haughn
ModelAviation.com online exclusive photos
As featured in the November 2011 issue.
“IT REMINDED ME of the last time I put my football helmet on before a game. I have a distinct recollection of that moment. I knew I would never have the opportunity to do that again."
“Playing football at the University of Southern California (USC); You might get a bloody nose or get hurt, but you were going to go out there and do the best you could. It's football. Sometimes you win and sometimes you lose, and that’s the whole thing with life. You need to be able to take that whole football experience with you and apply it to your life after football.”
And what an experience he’s had.
Joe Bok, (pronounced Bock) aerospace engineer and owner of Aero Telemetry, formerly played football as a linebacker for the University of Southern California. He said anticipating the final flight of his Spruce Goose for movie cameras was much like the last time he played college football.
Joe and his crew designed, built, and flew monster-scale versions of Howard Hughes’ H-4 Hercules (Spruce Goose), XF-11, and H-1 Racer for the Academy Award-winning 2004 movie, The Aviator. At the time they were the largest flyable model airplanes in the world.
Joe, 47, said he sometimes looks back and can’t believe that he had the experience of being on the big-budget Hollywood movie set and seeing his beautiful airplane designs fly so perfectly. That work put him on the map and Hollywood, the U.S. Government, and NASA have been knocking at his door since the movie premiered.
“That was a challenge to me as an aerospace engineer, a degreed aerospace engineer. That challenged us, pushed us as far as we could go. These were full-scale airplanes that just so happen to be unmanned. From an aerospace engineering standpoint, that was the most challenging, and probably the most satisfying thing I think I’ve ever done with unmanned airplanes.
“You know as a business owner, being able to get through that financial challenge … on a personal level, just being able to manage a crew like that. Seeing the team come together, and really be able to perform under pressure in an area where we’ve never been. Sometimes you look back on it, the guys that were involved in it early on, and they’re like ‘we can’t believe we did that.’”
Joe, an AMA member, sat down for an interview during the AMA’s 75th anniversary celebration in July at the International Aeromodeling Center in Muncie, Indiana.
The Aviator is about Howard Hughes’ life from the mid-1920s through the 1940s. Howard Hughes was a movie producer, business owner, and the inventor of ground-breaking airplanes.
The movie’s director, Martin Scorsese, had planned to use computer-generated imagery (CGI) to create all of the flight sequences for the movie, Joe said. However, after seeing tests of Joe’s 1/4-scale H-1 Racer on a motion-control rig, along with some forced perspective shots, the director changed his mind. Forced perspective is technique that creates an optical illusion. In this case, the actors were placed in front of and behind the model airplane.
About two months later, movie officials contacted Joe and asked him to submit a bid to build scale versions of the XF-11 and Spruce Goose. Joe’s bid was selected.
Another man, Jim Wright, had built a replica of the H-1 Racer that would be used in the movie. However, he was killed when his H-1 Racer crashed on August 4, 2003. After the crash, movie producers contacted Joe and asked if he could also build a 1/2-scale version of the H-1 Racer on a short deadline. The Los Angeles resident described the circumstances.
“I didn’t say yes right away. We had to think about it because I had a full shop of guys running on the XF-11 and I just didn’t know if we had the resources, time or personnel to do it. The other thing was they wanted to shoot that in three weeks. The way it works in the film business is that if it’s in the script and it’s feasible, they’ll do it. Special effects (are) always like second place to the first-unit work. But what they told us specifically was if it couldn’t be done then they’d just write it out of the script and they’d do something else.
Joe's team at Aero Telemetry designed, built, and flew the primary models used for The Aviator film which included the Hughes XF-11 and the Spruce Goose or H4 Hercules.
“It took a tremendous effort by the 35 people we had working on that project in my shop. Thirty-five people, three shifts for three months, nonstop, and the total of time that those shots were in the film was 30, maybe 45 seconds total, but they used those shots for the Academy Award Ceremony and presentation of the film itself for Best Picture. That's how amazing Martin Scorsese thought they were."
“You’re under so much pressure. It’s like being under fire. The way that those people were at us, telling us that they would sue us if we were late or [if] there were any problems. You could not be late. And the planes had to fly, so they had to work.
“There was none of this ‘oh, sorry, the dog ate my homework’ kind of thing. They’d sue [you]. They’d say we’re either going to sue you, were gonna cancel the contract, or we’ll write it out of the script.
“So there was this constant threat, pressure, and the risk on the company and on me personally at that time. And my reputation as an engineer was always on the line. If any of those planes would have crashed, for any reason at all, that’s what you would remember that whole thing by.”

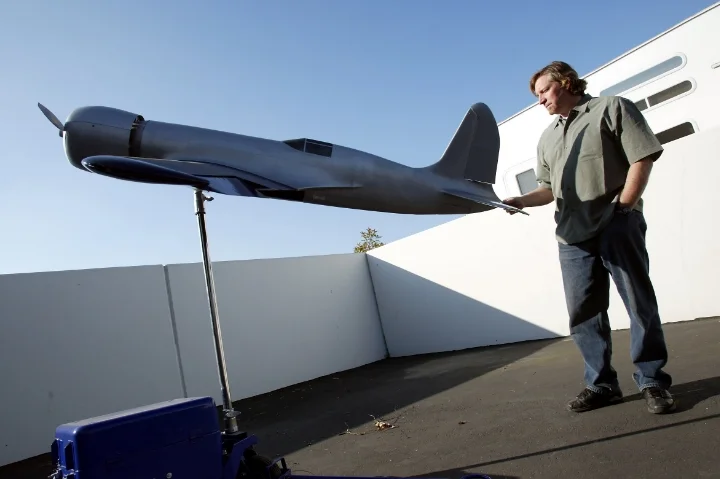

To build the H-1 Racer, Joe, CEO of Aero Telemetry, and his crew studied photographs and drawings of the original aircraft, which is on display in the Smithsonian National Air and Space Museum.
Although it had the shortest deadline, the H-1 Racer was the first airplane filmed for the movie. Joe had three months to build the Spruce Goose and the Hughes XF-11 for The Aviator.
The Aero Telemetry crew also built static models of World War I airplanes, such as a 1/5-scale Fokker D. VII, Spads, a Sikorsky S-38, and a bomber. These models were used for the Hell’s Angels movie scenes. The most interesting of these static airplanes used for motion control green-screen shots was the "camera plane" used by Howard Hughes during the filming of the Hell's Angels flight scenes. It was a Sikorsky bomber dressed up to look like a WWI Gotha IV Bomber. Joe's team did a great job getting that plane together for the film.
The Spruce Goose was the last model filmed for the movie. Joe reflected on the last day of filming. He said knowing that filming was wrapping up was bittersweet.
“I remember that the night before the last flight of the Spruce Goose I was standing there in the shop watching the final touches being put on the plane. Ian Stevenson, who was doing the painting, was putting the last coat of paint on the Spruce Goose. It was like 2 in the morning and it dawned on me that the next day would be the end of it all. I knew that the day after that, we were going to come in and nobody would be in the shop. Everybody would be going back to what they were doing before the filming."
After filming wrapped Joe got a nice surprise when one of the movie’s trailers premiered.
“The real honor about the whole thing is the trailers for the film [were shown] at the Academy Awards and Golden Globes. Think about it, they only have 30 seconds to show—it’s roughly a 3 hour film—and they only have 30 seconds to show their best footage. All three of our airplanes, our airplanes flying, were in those 30-second trailers. So that’s, to me, that’s the highest honor and compliment you can get as a builder and designer.
“Every one of those planes came home. Every one of them landed every time. They got their shots. I know it’s sort of "the movie is way bigger than what we did", but it was a real accomplishment in terms of what we did. With the way that regulations are right now with the FAA, we couldn’t have done it again. Not like that anyway, not in that time-frame. I don't think anything like that has ever been attempted by anyone outside the military, ever.”
After the last bit of footage was shot, the movie studio was left with large, unmanned airplanes. Joe said the static models were auctioned off by the movie company. Since the larger aircraft were considered medium-endurance tactical UAVs (Unmanned Air Vehicles), and could be dangerous in the wrong hands, they had to be disassembled.
Since filming ended, Joe and his employees have kept busy with the flood of new business that has come their way.
“I think The Aviator put us on the map in terms of large-scale airplanes that had to perform. They had to be built in an extraordinarily short amount of time. They had to work. These weren’t on a stick and they weren’t, you know, like the motion control [models] in Hollywood.
“Our ability to be able to make airplanes quickly and safely and have them work, it’s something that we’ve gotten better at since The Aviator. When the press came out, we picked up a little bit of UAV business and air frame fabrication for companies.”

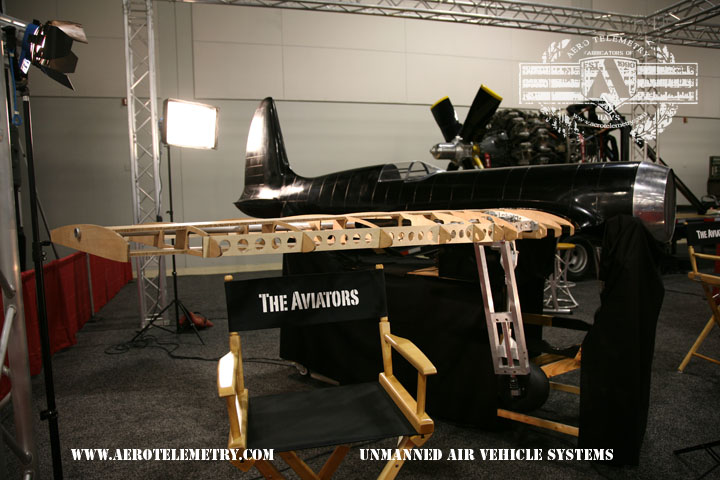

When building the aircraft for the movie, Joe discovered there was no landing gear available for such large unmanned airplanes. So, he and his team built their own. After the movie was released, this invention meant more business for the company.
“We picked up a ton of business doing (retractable) landing gear, hydraulic landing gear systems for different commercial aerospace and military drones. It’s kind of dirty work but it’s actually really pretty satisfying.
“It’s real easy to build a fuselage and throw somebody else’s engine on there. Nobody makes landing gear systems for these planes. No one, not in this size. You’d better have a guy who knows how to run a CAD, [do] solid work on the computer. You’d better have a machinist who knows how to hand-crank a part and a CNC machine; somebody who knows how to work a lathe; and you need an installation guy who knows how to put all that stuff together and make it work. It’s a complicated process.”
The company also continues to build electronics for UAVs, as well as equipment for the military. This equipment is used by men and women serving on the front lines in Afghanistan and Iraq, he said.
NASA also is an Aero Telemetry customer. Joe’s company builds electronic systems that support NASA’s meteorological equipment.
“These projects for Hollywood come around like every like 5 years or so,” he said.
Movie officials have considered Joe and his company for two other movie projects since The Aviator, and an upcoming movie project is looking promising.
Joe said he was contacted by director Michael Bay for the movie, The Island, but declined to submit a bid. Bay wanted Joe to build a helicopter that would fly very close to the actors. Joe said he felt the large aircraft would be too dangerous.
He also was considered for a Clint Eastwood film called Flags of Our Fathers. However, film officials decided to use CGI for the ultra-brief flight sequence in that movie.
Joe seemed quite excited about a potential new movie project.
“Paramount Pictures just picked up a Warren Beatty film and we were contacted. It was the same day we finished this H1 Racer airplane!, this was Friday, the week before the show, we just finished it and I got a phone call from a guy asking questions about and saying they had a script for Warren Beatty and they needed an XF-11. I told him we would be building a new XF-11 shortly but that I had an awesome H1 Racer sitting right here! ” Joe and his crew built a museum-scale flyable version of the H-1 Racer for the AMA’s 75th anniversary celebration.
Joe said he was told that filming for the movie will begin this fall. He said the movie is unnamed and expected to have an all-star cast.
“I don’t know that we’re going to be involved in it, but I hope we are.”
Joe said he plans to build a scale version of the XF-11, even if it isn’t for a movie. He was asked by the AMA to build a half-scale H-1 Racer, which made its maiden flight during the 75th anniversary event. In all, the airplane was flown seven times during the event. Joe said he wants to use new technology he and his staff used for this version of the H-1 Racer for the XF-11.
“(The) AMA approached me a year ago and said can you build us something like you did for The Aviator. And we talked about the three big models here: the Spruce Goose, the XF-11, and this one,” he said, while gesturing to the H-1 Racer. “Spruce Goose in Muncie, Indiana, would be kind of illegal. The XF-11 was a very challenging plane, and to be honest, there’s no way we could build it under 125 pounds.” (The AMA currently has a weight limit of 125 pounds for propeller-driven airplanes.)
“So, we said the H-1 would be a great plane to build. Everybody in the shop’s passionate about the airplane.”
When Joe and his crew first built the half-scale H-1 for the AMA, it weighed 225 pounds. They learned in January of this year that the weight had to be reduced by at least 100 pounds. For two months, the Aero Telemetry crew tried to think of ways to dramatically cut down the weight. They finally came up with a solution.
“The primary weight-saving technique was the use of carbon fiber and resin infusion technology. It’s a technique by which you lay up the carbon fiber and it allows for the least amount of resin to be absorbed by the fabric. So you keep the structure as light as possible.
“Some of the stuff that we’ve done on this plane wasn’t available to us in 2003.”
After building the plane, Joe had to figure out who would fly it. He learned about a week before the AMA’s event began that the pilot he had chosen couldn’t make it. He contacted the AMA and someone suggested Competitions Department Director Greg Hahn. Joe said he didn’t know Greg, but had heard of him. Greg has been in the hobby industry for 20 years and is known for flying large, heavy, and complex models.
Joe said he was impressed with how Greg handled the H-1 during the 75th anniversary event.
“I’m really, really, really happy I made his acquaintance. And I tell you what, if we do any more flying with this plane or anything else—if he can get on an airplane and come out to Hollywood—he’s the man.”
The airplane was a big hit during the 75th anniversary airshows. Many people stopped and looked at the big aircraft when it wasn’t in the air and asked Joe and his crew questions. He said some fliers at other sites thought it was a full-scale airplane.
The XF-11 isn’t the only scale model that Joe would like to build.
He said he would love to build a Lockheed Constellation. The full-scale airplane was built by TWA, but Howard Hughes had a hand in its design. Joe has an engine from a full-scale Lockheed Constellation in his shop, which he fires up once in a while.
When he has spare time, he likes to fly scale warbirds and electric-powered model airplanes. He joined the AMA in the early 1990s.
He said joining the AMA would be a great first step for someone interested in building aircraft for movies.
“Come out here and fly some airplanes,” he said.
